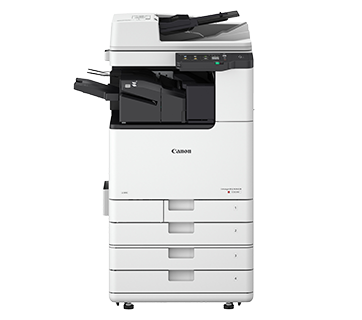

C3226i
คุณสมบัติสินค้า:
imageRUNNER C3226i ใช้งานง่ายและการทำงานในระดับที่น่าทึ่ง imageRUNNER C3226i เป็นเครื่องถ่ายเอกสารที่เพิ่มประสิทธิภาพขั้นตอนการทำงานในแต่ละวันด้วยคุณสมบัติของฟังก์ชันที่ใช้งานง่าย ลดความซับซ้อนของงานที่ต้องทำเป็นประจำและจัดการให้งานของคุณมีประสิทธิภาพมากขึ้น อุปกรณ์มัลติฟังก์ชั่นนี้มีการใช้งานที่ยอดเยี่ยมและการเชื่อมต่อที่ราบรื่น ช่วยให้ธุรกิจในรูปแบบปัจจุบันสามารถเพิ่มปริมาณงานด้วยสมรรถนะการทำงานที่เพิ่มขึ้น รองรับกระดาษสูงสุดขนาด A3 สี ความเร็วในการพิมพ์ที่สูงถึง 26/26 หน้าต่อนาที (สี/ขาวดำ)
หมวดหมู่ : สินค้าทุกชนิด , เครื่องถ่ายเอกสาร ,
แบรนด์ : Canon
Share
Main UnitMain UnitMachine Type
A3 Colour Laser Multifunctional
Core Function
Print, Copy, Scan, Send, Store and Optional Fax
Control Panel
7 inch TFT LCD WVGA colour Touch panel
Memory
Standard: 2.0 GB RAM
Storage
eMMC: 30GB*1
Interface Connection
NETWORKStandard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
OTHERSStandard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm)
Standard: 1,200 sheetsMaximum: 2300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm)
Standard: 250 sheetsMaximum: 650 sheets (with Inner Finisher-L1 and Copy Tray-T1)
Finishing Capabilities*2
Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand
Supported Media Types
Multi-purpose Tray:Thin, Plain, Heavy*3, Recycled, Coated, Colour, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Envelope
Upper Cassette:Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*4
Lower Cassette:Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*5
Supported Media Sizes
Multi-purpose tray:Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5RCustom size: 98.4 x 139.7 mm to 320.0 x 457.2 mmEnvelopes: COM10 No.10, Monarch, ISO-C5, DLEnvelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm
Upper Cassette:Standard size: A4, A5, A5R, A6R, B5Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mmEnvelope*4: ISO-C5
Lower Cassette:Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5RCustom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mmEnvelopes*5: COM10 No.10, Monarch, DL
Supported Media Weights
Multi-purpose tray: 52 to 300 gsmUpper/Lower Cassette: 52 to 256 gsmDuplex: 52 to 220 gsm
Warm-up Time(Quick start mode: ON)
4 seconds or Less*6From Sleep Mode: 10 seconds or less
10 seconds or Less*7
Dimensions (W x D x H)
565 x 687 x 891 mm
Installation Space (W x D)
1168 x 1116 mm
Weight
Approx. 76.9 kg including toner (with DADF-BA1)
PrintPrint Speed (BW/CL)
1-sided:Up to 26/26 ppm (A4, A5, A5R, A6R),Up to 20/20 ppm (A4R),Up to 15/15 ppm (A3)
2-sided: Up to 13/13 ppm (A4, A5R),Up to 10/10 ppm (A4R),Up to 7/7 ppm (A3)
Print Resolution (dpi)
600 × 6001200 x 1200 (half-speed)
Page Description Languages
Standard: UFR II, PCL6Optional: Adobe® PostScript® 3™
Direct Print
Supported file types:RUI: PDF, EPS, TIFF/JPEG, XPSUSB Memory: PDF, TIFF/JPEG, XPSNetwork Place: PDF, TIFF/JPEG, XPS
Printing from Mobile and Cloud Application
AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
Fonts
PS fonts: 136 RomanPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9
Print Features
Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating System
UFRII: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.11 or later)
PCL: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019
PS: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.11 or later)
PPD: Windows® 8.1/10, MAC OS X (10.11 or later)
CopyCopy Speed (BW/CL)
1-sided:Up to 26/26 ppm (A4, A5, A5R, A6R),Up to 20/20 ppm (A4R),Up to 15/15 ppm (A3)
2-sided:Up to 13/13 ppm (A4, A5R),Up to 10/10 ppm (A4R),Up to 7/7 ppm (A3)
First-Copy-Out Time (A4, BW)
Approx. 7.0 / 8.7 seconds or less
Copy Resolution (dpi)
600 x 600
Multiple Copies
Up to 9,999 copies
Copy Density
Automatic or Manual (9 Levels)
Magnification
25% - 400% (1% Increments)Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400%
ScanType
Optional: DADF-BA1 [2-sided to 2-sided] or Platen Cover-Y3DADF: Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm)
Up to 100 sheets
Acceptable Originals and Weights
Platen: Sheet, Book and 3-Dimensional objects
Document Feeder media weight:1-sided scanning: 30 to 128 gsm (BW), 64 to 128 gsm (CL)2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
Supported Media Sizes
Platen: max. scanning size: 297.0 x 431.8 mm
Document Feeder media size:A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL, A4)
DADF:1-sided Scanning: 70/70 (300 dpi, send), 51/42 (600 dpi, copy)2-sided Scanning: 35/35 (300 dpi, send), 25.5/25.5 (600 dpi, copy)
Scan Resolution (dpi)
Scan for Copy: up to 600 x 600
Scan for Send:(Push, BW) up to 600 x 600, (Pull, BW) up to 600 x 600(Push,CL) up to 300 x 300, (Pull, CL) up to 300 x 300
Scan for Fax: up to 600 x 600
Pull Scan Specifications
Colour Network ScanGear2. For both TWAIN and WIA.
Supported OS: Windows® 8.1 / 10 / Server2012 / Server2012 R2 / Server 2016 / Server 2019
Scan Method
PushScan, PullScan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online/Online Express)
SendDestination
Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAVOptional: Super G3 FAX
Address Book
LDAP (2,000) / Local (1,600) / One-touch (200)
Send Resolution (dpi)
Push: 100 x 100, 150 x 150, 200 x 100 (Normal), 200 x 200 (Fine), 200 x 400*10 (SuperFine), 300 x 300, 400 x400*10 (UltraFine), 600 x 600*10
Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400*10, 600 x 600*10
Communication Protocol
File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAVEmail/iFax: SMTP (send), POP3 (receive)
File Format
Standard: TIFF (MMR), JPEG*11, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
FaxMaximum Number of Connection Lines
1
Modem Speed
Super G3: 33.6 kbpsG3: 14.4 kbps
Compression Method
MH, MR, MMR, JBIG
Resolution (dpi)
400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending / Receiving Size
Sending: A3, A4, A4R, A5*12, A5R*12, B4, B5*13, B5R*12Receiving: A3, A4, A4R, A5R, B4, B5, B5R
Fax Memory
Up to 30,000 pages
Speed Dials
Max. 200
Group Dials / Destinations
Max. 199 dials
Sequential Broadcast
Max. 256 addresses
Memory Backup
Yes
StoreMemory Media
Standard: USB Memory
SecurityAuthentication and Access Control
User Authentication(Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document Security
Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*14), Recieve Data Security(Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*15), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
Network Security
TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
Device Security
Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup, Runtime Intrusion Detection
Device Management and Auditing
Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting
EnvironmentalOperating Environment
Temperature: 10 to 30 ºCHumidity: 20 to 80 % RH (Relative Humidity)
Power Source
220-240 V 50/60 Hz 4 A
Power Consumption
Maximum: Approx. 1,500 WStandby: Approx. 44.0 W*16Sleep mode: Approx. 2.0 W*17, Approx. 1.0 W*18ConsumablesToner Yield (Estimated Yield @5% coverage)
NPG-67 TONER BK: 36,000 pagesNPG-67 TONER C/M/Y:19,000 pagesNPG-67L TONER C/M/Y: 2,500 pages
Software and Printer ManagementTracking and Reporting
uniFLOW Online Express
Remote Management Tools
iW Management ConsoleeMaintenanceContent Delivery System
Scanning Software
ScanGear
Optimisation Tools
Canon Driver Configuration Tool
Document Publishing
iW DESKTOP
Paper Supply OptionsCassette Feeding Unit-AW1
Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, LetterheadPaper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mmPaper Weight: 52 to 256 gsmPower Source: From the Main UnitDimensions (W x D x H): 565 x 635 x 248 mmWeight: Approx. 16.0 kg
Output OptionsInner 2way Tray-M1
Tray Capacity (with 80 gsm paper)Upper tray:SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheetsLower tray (standard tray):A4, A5, A5R, A6R, B5, B5R: up to 250 sheetsSRA3, A3, A4R, B4: up to 100 sheets
Paper Weight: 52 to 300 gsmDimensions (W x D x H): 428 x 405 x 88 mmWeight: Approx. 0.7 kg
Copy Tray-T1
Capacity (with 80 gsm paper):A4, A5R, B5, B5R: 100 sheetsA3, A4R, B4: 75 sheets
Dimensions (W x D x H): 442 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)Weight: Approx. 0.5 kg
Inner Finisher-L1
Tray Capacity (with 80 gsm paper):Upper Tray:SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheetsLower Tray:A4, A5, A5R, B5: approx. 500 sheetsSRA3, A3, A4R, B4, B5R: 250 sheetsA6R: 30 sheetsEnvelope: 10 sheets
Paper Weight: 52 to 300 gsmStaple Position:Corner, DoubleStaple Capacity:A4, B5: 50 sheets (52 to 90 gsm)A4R: 40 sheets (52 to 90 gsm)A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:A3, A4, B4, B5:10 sheets (52 to 64 gsm)8 sheets (65 to 81.4 gsm)6 sheets (82 to 105 gsm)
Staple On Demand: approx. 40 sheets (80 gsm)Dimensions (W x D x H): 727× 525 × 225 mm (attached to the main unit, when the extension tray is extended)Weight: Approx. 9.1 kg
Inner 2/3 Hole Puncher-D1
(Requires Inner Finisher-L1)Two or Three HolesAcceptable Punch Paper Weight: 52 to 300 gsmAcceptable Punch Paper Size:Two holes A3, A4, A4R, A5, B4, B5, B5R,Three holes A3, A4, B4, B5
Inner 2/4 Hole Puncher-D1
(Requires Inner Finisher-L1)Two or Four HolesAcceptable Punch Paper Weight: 52 to 300 gsmAcceptable Punch Paper Size:Two holes A3, A4, A4R, A5, B4, B5, B5R,Four holes A3, A4
Hardware AccessoriesCard Readers
Copy Card Reader Attachment-H3IC Card Reader Attachment-B3IC Card Reader Attachment-B4Copy Card Reader-F1
Others
Option Attachment kit for Reader-A2DADF-BA1Platen Cover-Y3Utility Tray-B1
System and Controller OptionsPrint Accessories
PCL International Font Set-A1PCL Asian Font Set-A1PS Printer Kit-CS1
Send Options
Universal Send Trace & Smooth PDF Kit-A1Universal Send Digital User Signature Kit-C1
Barcode Printing
Barcode Printing Kit-D1
System Accessories
Copy Control Interface Kit-D1
Fax Accessories
Super G3 FAX Board-BJ1Remote Fax Kit-A1
Other OptionsAccessibility Accessories
ADF Access Handle-A1Media Adjustment kit-A1
Staple Cartridges
Staple-P1
eMMC physical capacity is 64GB, use 30GB due to pseudo SLC mode.Finishing capabilities vary depending on the options connected.SRA3 is unsupported for Coated (257-300gsm) and Heavy(257-300gsm) paper.Envelope Feeder Attachment Kit B (standard) is required.Envelope Feeder Attachment Kit A (standard) is required.Time from device power on to when copy icon appears and is enabled to operate on the touch panel display.Time from device power on, until copy ready (not print reservation).Requires optional PCL INTERNATIONAL FONT SET-A1.Require optional BARCODE PRT KIT-D1.Colour mode is black and white only.Single page only.Sent as A4.Sent as B4 short.Requires optional uniFLOW Online / uniFLOW.Requires optional Universal Send Digital User Signature Kit-C1.Reference value: measured one unit.Wireless LAN power serve mode OFF. Sleep mode is not available in all circumstances due to certain settings.Wireless LAN power serve mode ON. Sleep mode is not available in all circumstances due to certain settings.
